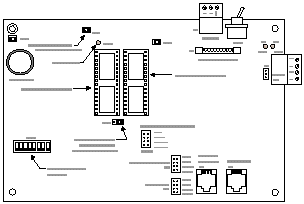

WS1500
Node Controller

• communications buffer/network hub
• zoned control strategies
• distributed equipment locations
• ASCII protocol for I/O Bus system integration

Features

Hardware

• isolated switching power supply
• 256k RAM expandable to 512k
• watchdog timer
• data highway diagnostic hardware
• FLASH memory
• communication/power supply LEDs
• SuperCap battery backup
• standard realtime IC clock

Software

• menu-driven operator interface
• multilevel password security
• English language programming
• global system access
• system-wide programming and diagnostics
• dial-in/automatic dial-out capabilities
• accelerated alarm handling

• high throughput communications buffer

Description

The WS1500 Node Controller is an active network hub.  Special alarm and communications handling in the Node make it a powerful supervisory controller.

Using Nodes in large systems provides a means for effective zone management.  Nodes can be positioned to manage physical zones or common equipment, making all programming, diagnostic and supervisory functions for that zone or equipment group available at one location.  The Node is designed to handle high-volume trending and alarm buffering.
