Description

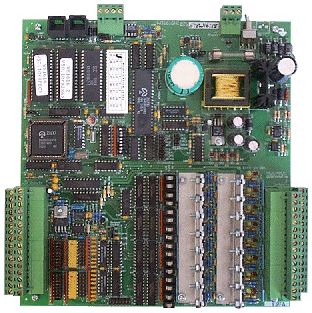

The WS1616 is a high speed modular controller ideal for the control of major mechanical and electrical equipment.  This SAC can be used as a fully functional single-panel system, or integrated into a large system as a supervisory controller with complete programming and diagnostic capabilities.

WS1616 is expandable to a maximum of 72 input/output points; enough for most high point density areas or complete single panel systems.

Full remote monitoring and control is facilitated by automatic alarm dial-out and manual operator dial-in capabilities.

• high point density areas (up to 72 input or output points in various combinations)
• mechanical/electrical equipment control
• fully functional single-panel systems
• remote monitoring & control applications

Features

Hardware

• 16 Universal inputs
• 16 Universal outputs
• expandable to 72 I/O points
• isolated switching power supply
• standard onboard realtime clock
• LED output status indicators
• hand/off/auto output switches
• Rx/Tx/diagnostic/power supply LEDs
• SuperCap battery backup
• watchdog timer

Software

• menu-driven operator interface
• multilevel password security
• English language programming
• global system access
• system-wide programming
• system-wide diagnostics
• fixed-function (canned) programs
