MicroSAC Expansion Modules

white line walker.gif (930 bytes)

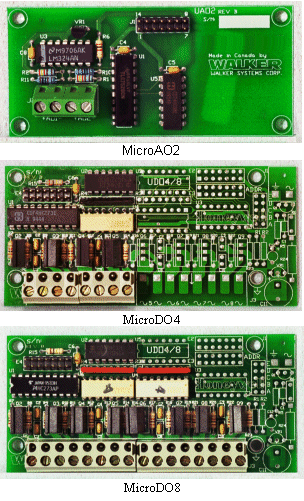

The MicroSAC Expansion Modules provide additional digital and analog output points to MicroSAC installations.  Any one of the three modules can be applied to any MicroSAC.


  • increase any MicroSAC's output count by 2 analog outputs or 4 or 8 digital outputs
  • one module can be attached to any MicroSAC-20, 21, 26 or VAV


  • rugged Triac switches (MicroDo4/DO8)
  • power supply over-current protection with automatic reset fuse
  • high current rating (1.2A) - Triacs
  • low power consumption
  • easy installation

white line walker.gif (930 bytes)

Left click to view with Acrobat Reader Right click & "Save Target As..." to download PDF file: Micro_exp.pdf
