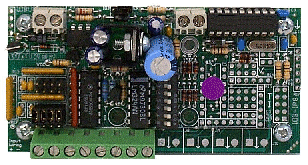

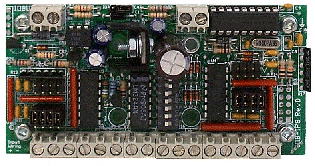

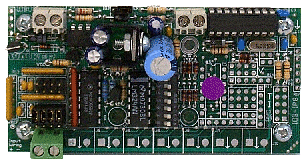

IOB-IP1/IP4/IP8
I/O Bus Expansion Modules

white line walker.gif (930 bytes)


Description

The IOB-IP1, IOB-IP4 and IOB-IP8 I/O Bus Expansion Modules provide additional universal input points to any SAC installation.

 Applications
  • increase any SAC's universal input count by increments of 1, 4 or 8 inputs
  • add up to a maximum of 24 I/O Bus modules to any SAC

Features

  • plug and play
  • power supply over-current protection
  • low power consumption
  • PIC microprocessor for communication
  • optically isolated communication
  • Walker ASCII protocol
  • easy installation
  • selectable address (0-24)

Power

  • powered from I/O Bus or 24 VAC

Mounting

  • fits on a WSDO8 backplate

Wiring

  • 18 AWG twisted shielded pair
